GIRAFFE : the VLT multi-fiber spectrograph revealing the birth of galaxies
SEDI-ATI is specialized in complex assemblies of a high number of fibers for large instruments.
GIRAFFE : A multi-fiber spectograph on telescope

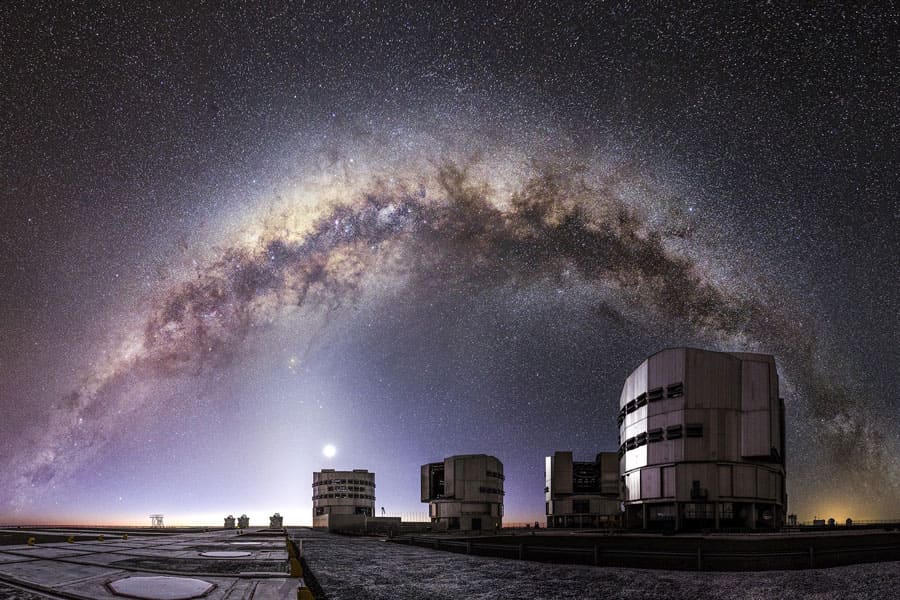

GIRAFFE is a multi-fiber spectrograph for the entire visible range from 370 nm to 950 nm. It has been installed on one of the four VLT (Very Large Telescope) of the ESO (European Southern Observatory) in Chile since 2002. This instrument allows high-resolution spectral observations of a wide variety of celestial objects, from the stars of the Milky Way to the most distant galaxies.
The principle of the instrument consists in positioning on the sky, in a field of view of 25 arcmin in diameter (about the size of the moon), a series of optical fibers, each of which is designed to collect the light from a portion of the sky. The light is then channeled by these fibers to the spectrographs where it is diffracted to obtain a spectrum.
The study of spectra using light to map galaxies
The lines present in the spectrum of a galactic object are a goldmine of information! Their characteristics tell us about the physical properties of the object observed, such as its speed, its temperature or its degree of ionization. The study of the spectra of celestial objects makes it possible to map galaxies and to study their movements and evolution. All this information could help to learn more about the birth of galaxies. How did the first galaxies appear? And why?
Our contribution on the fiber systems

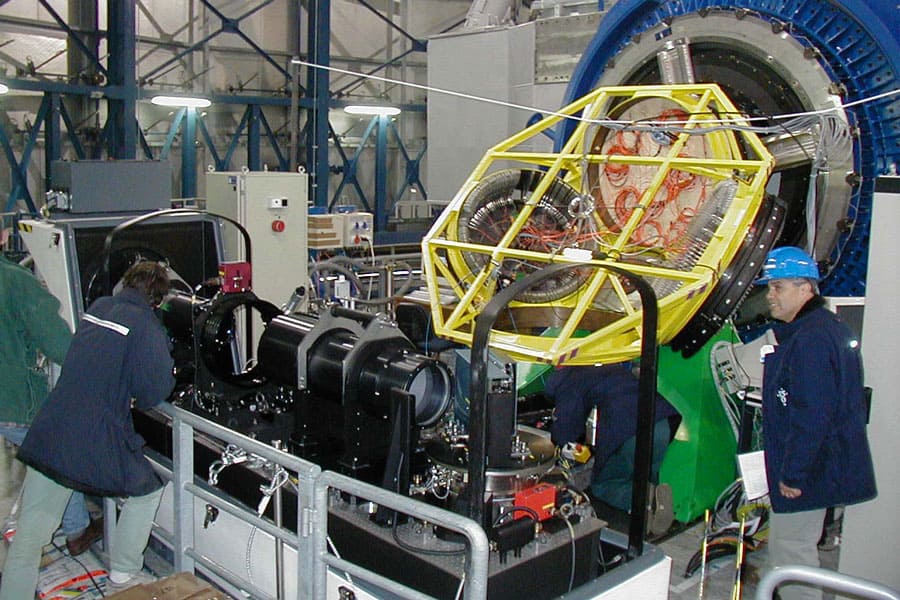

SEDI-ATI has designed and supplied multiple fiber configurations linking the focal point of the telescope to Fiber Large Array Multi Element Spectrograph FLAMES installed on the UT2 of the VLT. FLAMES is composed of the two spectrographs GIRAFFE and UVES. The fiber optic links provided by SEDI-ATI allow UVES to observe simultaneously a maximum of 8 objects with a very high spectral resolution (R ~ 47000), and GIRAFFE to observe 15 galaxies at the same time or a little more than 130 objects of small dimensions but with a slightly lower resolution (typically between R ~ 5000 and R ~ 30000).
SEDI-ATI has worked on the fiber systems MEDUSA, IFU and ARGUS that feed the GIRAFFE spectrograph.
- MEDUSA: A set of 132 x 200 µm core diameter fibers equipped with magnetic knobs to mount them on a positioner plate. Each fiber provides the spectrum of a star. Thus, up to 132 separate objects can be observed in one go.
- IFU: There are 15 IFU units (Integral Field Unit). These are deployable systems, consisting of 20 optical fibers of 140 µm each, positioned on a square matrix. Each IFU is similar to the eye of an insect with its grid of microlenses, allowing to intercept a portion of the sky.
- ARGUS: Similar to IFU with the difference that it consists of a single IFU of 308 fibers of 140 µm concentrated in the center of the field on a rectangular matrix of 22 x 14 microlenses.
