Front view of the RING fiber-optic probe for radial emission from SEDI-ATI

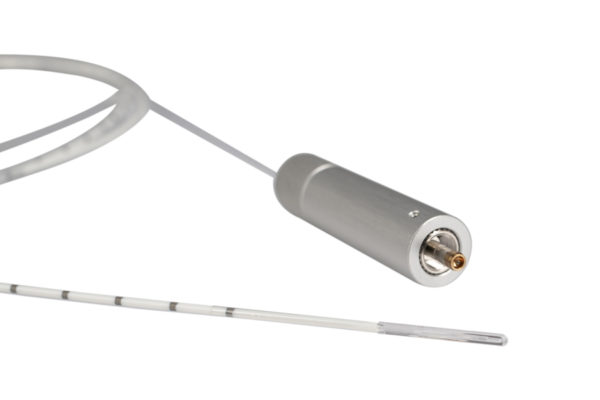

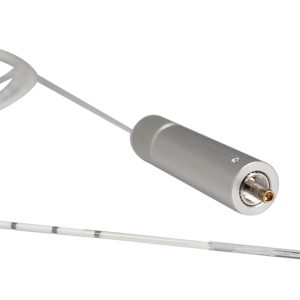

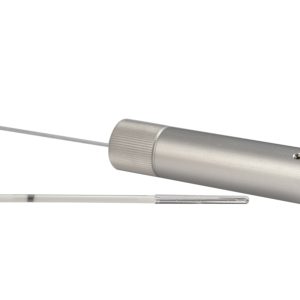

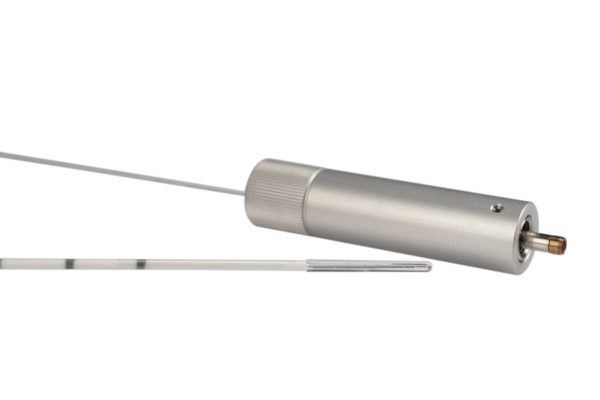

Zoom on the RING fiber-optic probe for radial emission from SEDI-ATI

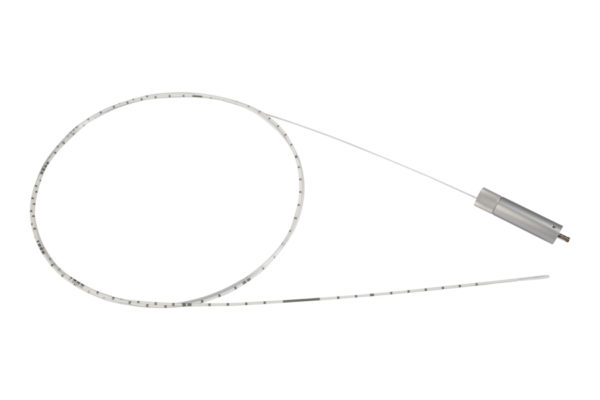

Large view of the RING fiber-optic probe for radial emission from SEDI-ATI
RING fiber-optic probe for radial emission from SEDI-ATI
RING fiber-optic probe for radial emission from SEDI-ATI
RING fiber-optic probe for radial emission from SEDI-ATI

Key features

  • 600 µm silica/silica fiber
  • sold not sterilized
  • fiber end inserted into a silica capillary: quartz tube Ø 1.7 mm, L 20 mm
  • handpiece anodized grey
  • annular effect
  • SMA connectors

Ring 600 μm

Sold sterilized
no
Reference
RCPWMI-RI572-16.391
Fiber type
silica/silica 600 µm core diameter
Operating wavelength
1470 nm
Fiber length
2,5 m
Capillary diameter
1.7 mm
Capillary length
20 mm
Hand piece
anodized grey
Connector
SMA connector
Datasheet Your specific request
