Key features

  • max. spool length: 500 m
  • height: 80 mm
  • diameter: 85 mm
  • SM or MM fibers

RBOB-90A

Spool length
from 300 m to 500 m

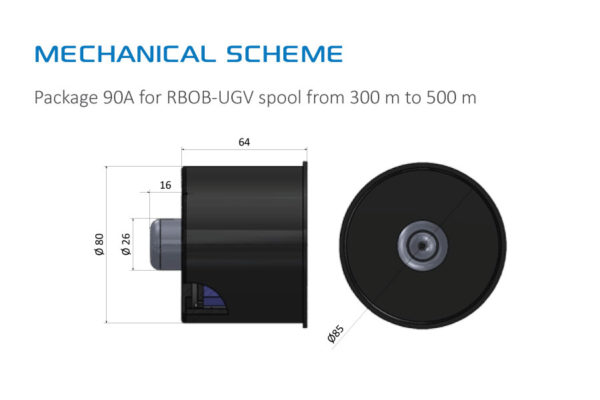

Dimensions
80 mm height x 85 mm diameter
Weight
< 300 g max.
Connection to the control station
ST connector mounted on the extruded overcoating fiber
Connection to the vehicle
30 cm long pigtail with 1.8 mm jacket and terminated with a ST connector
Fiber type
SM enforced fiber 9/125/350 μm
MM GI 50/125/350 μm OM2
Operating wavelength range
1310-1550 nm
850-1300 nm
Bend radius
5 mm
10 mm
Insertion loss (without connector)
0.7 dB/km @1310 nm and @1550 nm
3.0 dB/km @850 nm ; < 1.5 dB/km @1300 nm
Tensile strength
> 34 N
Breaking strength
60 N
Deployment force
< 0.05 N
