Key features
- max. spool length: 1 000 m
- height: 64 mm
- diameter: 80 mm
- weight: < 230 g
- SM fiber 9/125/250 μm
- venting holes on the box

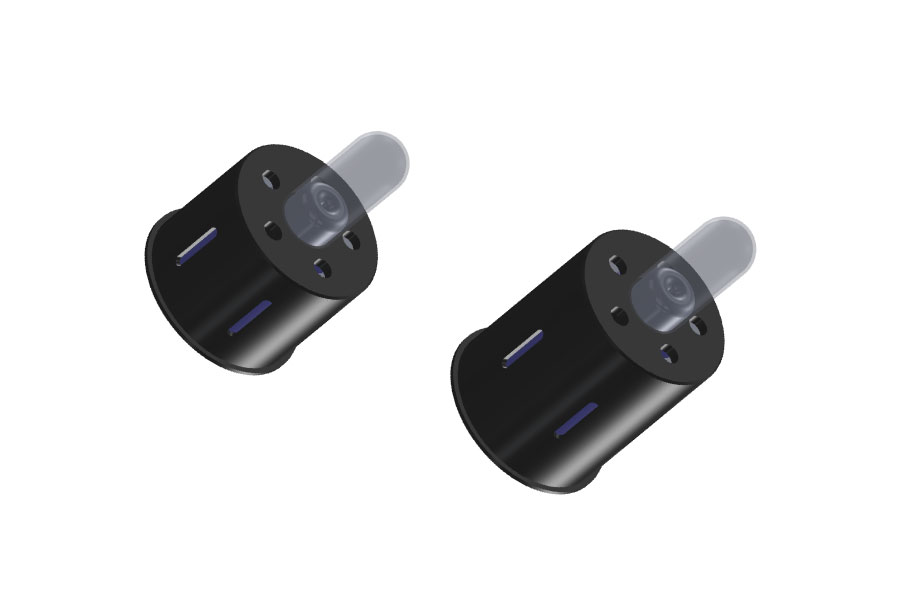

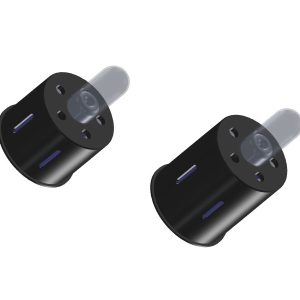

RBOB-ROV-91A
Spool length
from 300 m to 1 000 m

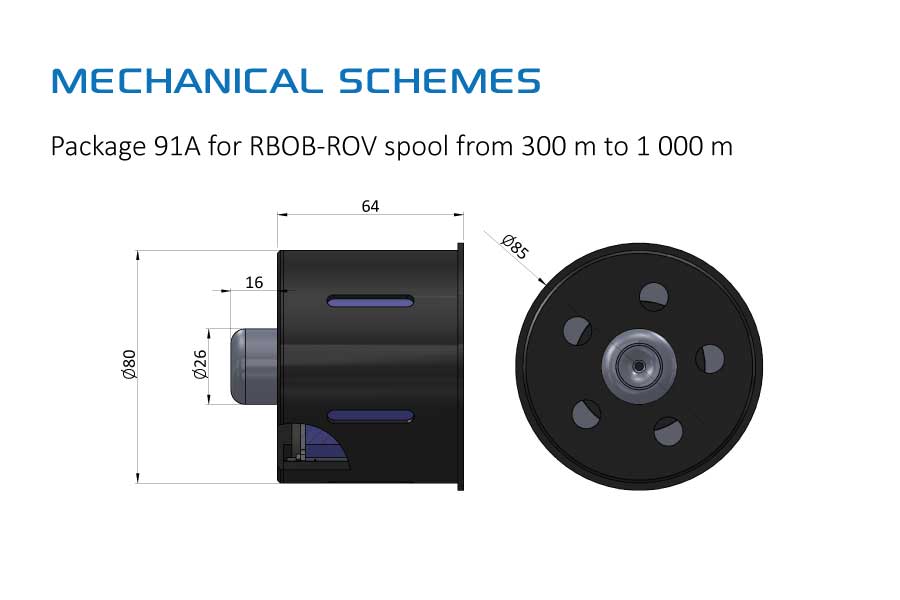

Dimensions
64 mm height x 80 mm diameter
Weight
< 230 g max.
Connection to the control station
ST connector mounted on the extruded overcoating fiber
Connection to the vehicle
30 cm long pigtail with 1.8 mm jacket and terminated with a ST connector
Fiber type
SM fiber 9/125/250 μm
Operating wavelength range
1310-1550 nm
Bend radius
< 5 mm
Insertion loss (without connector)
0.7 dB/km @1310 nm and @1550 nm
Tensile strength
> 34 N
Breaking strength
60 N
Deployment force
< 0.05 N
