Key features
- Ultra-high vacuum
- 10-8 l/s hermeticity
- Broad wavelength range
- From 1 o 4 channels on DN 40 CF flange
- PM, SM, MM GI50, MM GI62.5, MM SI with 125 μm cladding
- FC/APC adapters
- Individual channels NOT replaceable
- Ruggedized design

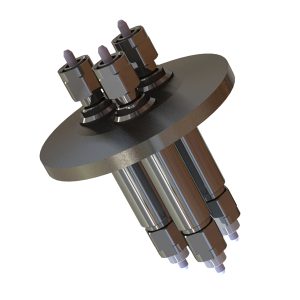

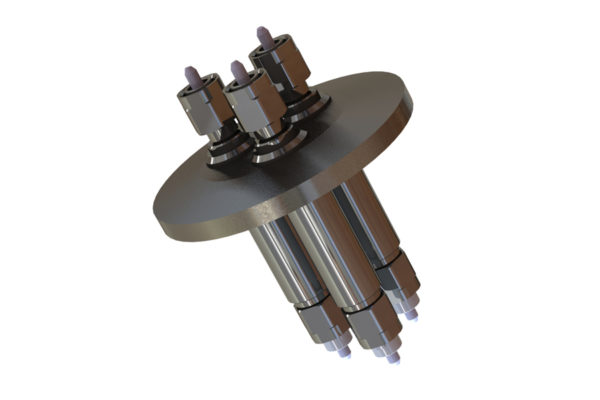

KTRAV-T12-CF40-FCA
Pressure
ultra-high vacuum
Hermeticity
10-8 mbar.l/s
Flange type
DN 40 CF
Sealing technology
copper seal ring
Housing material
stainless steel 304L
Number of channels
1 to 4
Panel drilling diameter
depends on the number of channels
Panel thickness
1 mm min.; 23,5 mm max.
Tightening torque
–
Adapter interface
FC/APC
Fiber type
PM, SM, MM GI50, MM GI62.5, MM SI with 125 μm cladding
Insertion loss
< 1.5 dB max. @1550 nm (0.7 dB typ. @1550 nm on SMF128)
Operating wavelength range
200-2000 nm depending on the fiber
Operating temperature range
-55°C to +125°C
Storage temperature range
-55°C to +200°C
