Key features
- From vacuum to 30 bars
- 10-5 mbar.l/s hermeticity
- Broad wavelength range
- Singlechannel
- Compatible with 200 µm to 1500 µm optical fiber patch cords
- SMA adapters with a Viton-O-ring

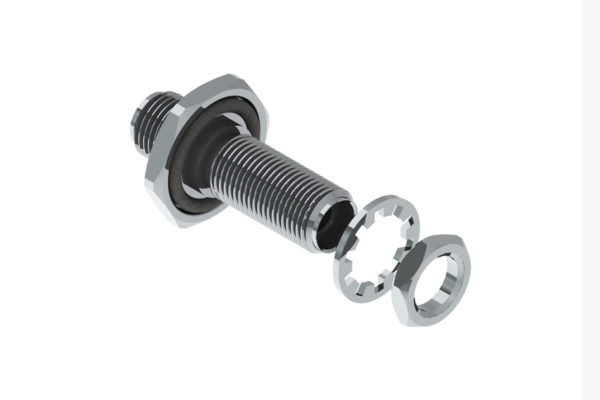

KTRAV-SMA-IP
Pressure
from vacuum to 30 bars
Hermeticity
10-5 mbar.l/s
Sealing technology
–
Housing material
stainless steel 303L
Panel drilling diameter
–
Panel thickness
3,28 mm min.; 6 mm max.
Tightening torque
–
Adapter interface
SMA with Viton O-ring
Fiber type
–
Insertion loss
< 3 dB max.
Operating wavelength range
–
Operating temperature range
-40°C to +85°C
Storage temperature range
–
Protection index
IP68 with associated product, according to EN 60529, IEC 529 & DIN 40050
Datasheet
