Key features
- From vacuum to 1000 bars
- 10-8 l/s hermeticity
- Broad wavelength range
- Singlechannel
- PM, SM and MM fibers
- FC/PC adapters

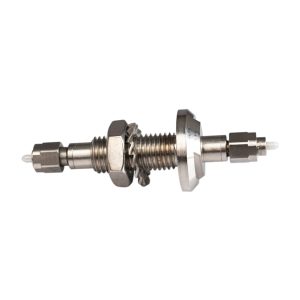

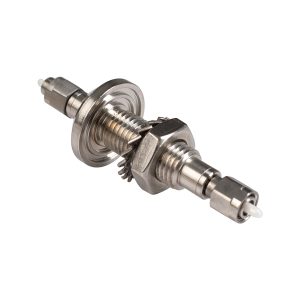

KTRAV-FC-M12
Pressure
500 bars @125°C ; 1000 bars @20°C
Hermeticity
10-8 mbar.l/s
Sealing technology
epoxy
Housing material
stainless steel 304L
Panel drilling diameter
12.2 mm 0/+0,3
Panel thickness
1 mm min.; 20 mm max.
Tightening torque
25 Nm max.
Adapter interface
FC/PC
Fiber type
PM, SM, MM GI50, MMGI62.5, MM SI with 125 μm cladding
Insertion loss
< 1.0 dB max. @1300 nm (0.3 dB typ. @1300 nm on SMF128)
Operating wavelength range
200-2000 nm; depending on the fiber
Operating temperature range
-55°C to +125°C
Storage temperature range
-55°C to +200°C
Datasheet
