Key features
- From vacuum to 1000 bars
- 10-8 l/s hermeticity
- Broad wavelength range
- Singlechannel
- MM step index fibers up to 1000 μm core
- SMA adapters

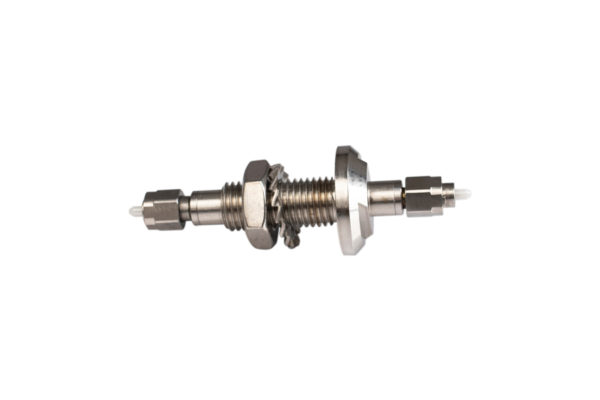

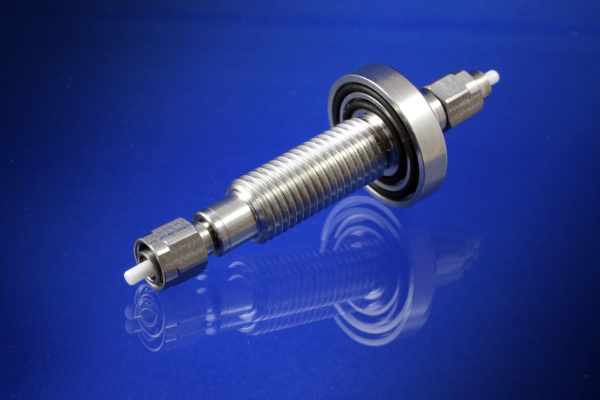

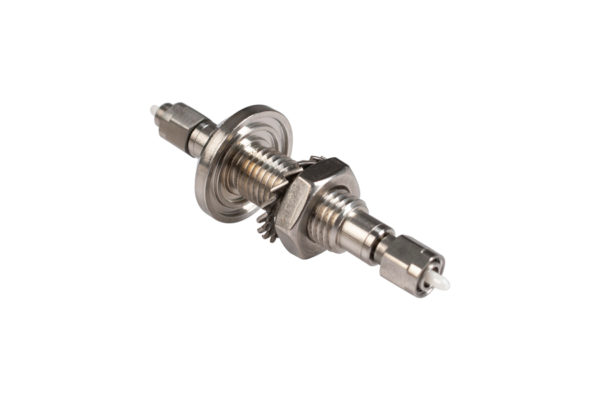

KTRAV-SMA-M12
Pressure
500 bars @125°C ; 1000 bars @20°C
Hermeticity
10-8 mbar.l/s
Sealing technology
epoxy
Housing material
stainless steel 304L
Panel drilling diameter
12.2 mm 0/+0,3
Panel thickness
1 mm min.; 20 mm max.
Tightening torque
25 Nm max.
Adapter interface
SMA
Fiber type
MM SI up to 1000 μm core
Insertion loss
< 3 dB max. @850 nm (2 dB typ. @850 nm on 600 μm fiber)
Operating wavelength range
200-2000 nm; depending on the fiber
Operating temperature range
-55°C to +125°C
Storage temperature range
-55°C to +200°C
