Key features
- From vacuum to 600 bars
- 10-8 l/s hermeticity
- Broad wavelength range
- Singlechannel
- MM step index fibers up to 1000 μm core
- SMA adapters

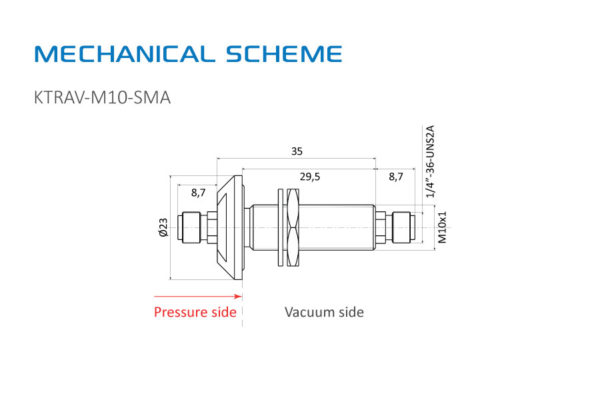

KTRAV-SMA-M10
Pressure
from vacuum to 600 bars
Hermeticity
10-8 mbar.l/s
Sealing technology
epoxy
Housing material
stainless steel 304L
Panel drilling diameter
10.2 mm 0/+0,3
Panel thickness
5 mm min.; 20.5 mm max.
Tightening torque
7.5 Nm max.
Adapter interface
SMA
Fiber type
MM SI up to 1000 μm core
Insertion loss
< 3 dB max. @850 nm (2 dB typ. @850 nm on 600 μm fiber)
Operating wavelength range
200-2000 nm; depending on the fiber
Operating temperature range
-55°C to +125°C
Storage temperature range
-55°C to +170°C
