1x2 achromatic fiber optic multimode couplers

Key features

  • GI50/125 or GI62.5/125 fibers
  • broad wavelength range
  • wavelength insensitive
  • stable coupling ratio
  • low insertion loss
  • low cost
  • custom configurations available

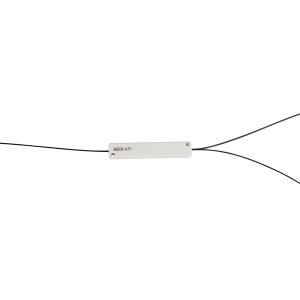

1x2 achromatic fiber optic multimode couplers

SEDI-ATI’s 1×2 achromatic fiber-optic multimode couplers have been designed for applications where wideband and achromaticity are required at an attractive cost.

Besides, they can be made with any Graded Index fiber types such as GI50/125 μm or GI62.5/125 μm. We can also offer GI100/140 μm upon request.

Please contact us to discuss your specific requirements as our achromatic fiber-optic multimode couplers can be customized with different coupling ratios, different fiber lengths, and even 2×2 configurations.

  • CP-A

    Port configuration
    1x2
    Coupling ratio
    50/50; other coupling ratios from 10/90 to 50/50
    Fiber lengths on each port
    1 m
    Fiber type
    GI 50/125 μm or GI 62.5/125 μm
    Directivity
    > 30 dB; guaranted by design
    Uniformity
    < 1,0 dB
    Insertion loss*
    < 4 dB; measured in a 50/50 configuration
    Operating wavelength range
    532 -1625 nm; depending on fiber type
    Operating temperature range
    -20°C to +70°C
    Storage temperature range
    -40°C to +85°C
