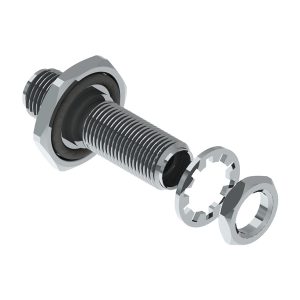

Threaded hermetic adapter up to 30 bars

It is a hermetic adapter that allows to hermetically connect two optical fiber patch cords terminated with SMA, ST/PC or ST/APC connectors. Both sides must remain connected to maintain seal integrity.

Indeed, the SMA and ST coupling parts feature an integral self-sealing design that ensures a hermetic, environmentally and hermetically sealed fiber connection. Hence, the KTRAV-IP adapter, when connected to the fiber patch cord, can reach a hermeticity of 10-5 mbar.l/s. Besides, it can withstand a pressure level of up to 30 bars. As a result, the connected optical fiber is completely protected from the surrounding environment.

The panel hermeticity is obtained by a gasket in the flange while the inner hermeticity is obtained by a gasket on the connector ferrule.

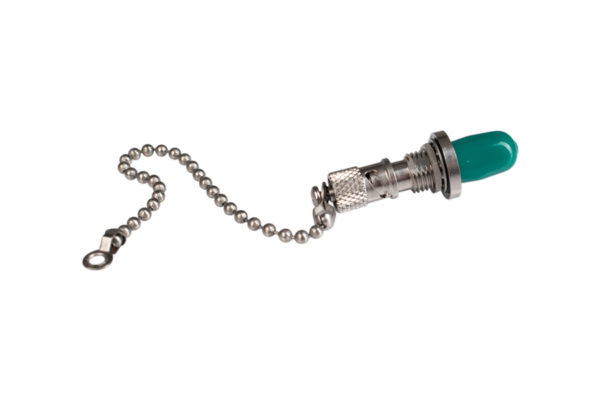

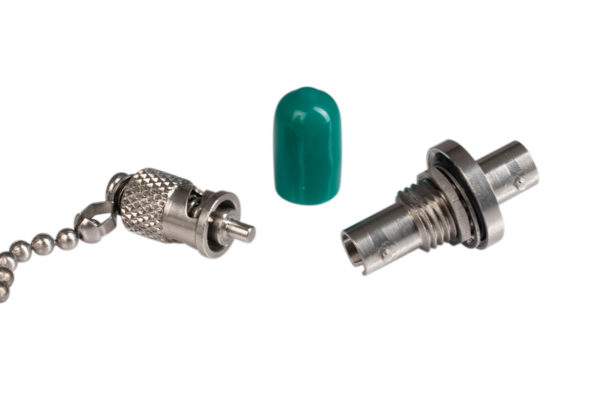

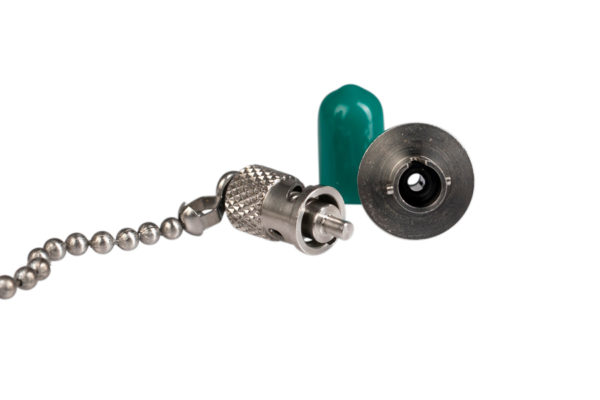

This hermetic adapter is supplemented by specific ruggedize SMA or ST connectors and dust caps.

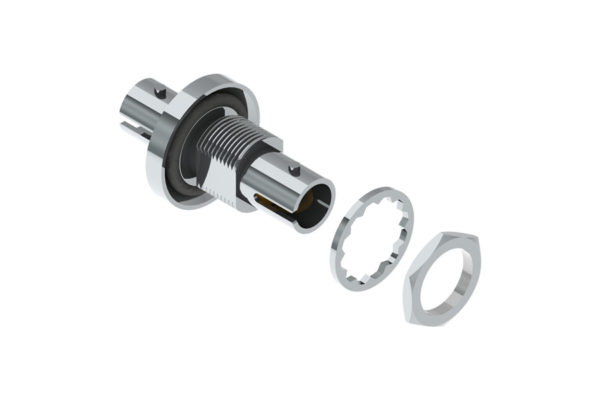

We also offer a variety of compatible patch cords separately. The SMA connectors version supports fiber patch cords from 200 µm to 1500 µm core diameters terminated with in-house SMA connectors equipped with a Viton O-ring. The ST versions are compatible with any patch cords up to 1000 µm and terminated with standard ST connectors.

Please contact us to discuss your specific requirements regarding our hermetic adapter solutions for vacuum and pressure applications up to 30 bars.
