The K-Power SMA to SMA power transfer adapter aims at connecting two SMA-905 terminated fiber optic cables.
PowerTransfert adapter
Implementation of SMA-SMA adapters for power transfer
K-Power SMA to SMA power transfer adapter aims at connecting two SMA-905 terminated fiber optic cables.
KeyFeatures
- SMA-905 bulkhead adapter,
- Stainless steel robust designs,
- 3 wavelength ranges: UV or VIS or IR,

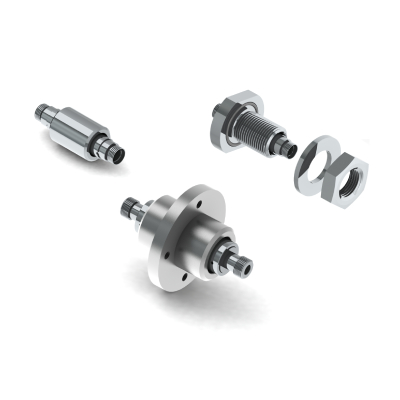

- 3 different housings: stand-alone or with a flange or with a hermetic sealing,
- 10-2 mbar.l/s hermeticity available,
The K-Power is designed like an air-spaced SMA to SMA adapter. Hence, it is ideal to connect a high-power patchcord coming from a laser source to a disposable high-power pigtail or patchcord. Indeed, apart from standard SMA-905 connectors, this adapter is directly compatible with power SMA-905 connectors with either a standard or a free-standing fiber tip.
When two identical optical fibers are connected to the K-Power, the laser beam diameter as well as the numerical aperture are maintained. Besides, it properly aligns the cores of each terminated fiber end.
The K-Power SMA to SMA power transfer adapter is available for 3 different wavelength ranges from 350 nm to 1700 nm.
In order to be compliant with a variety of industrial and medical applications, we have designed 3 robust housings. So far, we offer a stand-alone unit, another version with a flange, and the last version with a hermetic sealing that ensures a 10-2 mbar.l/s hermeticity.
