Land fiber optic spools

Key features

  • bidirectional link
  • length from 300 m to 1 km
  • compact and lightweight
  • high bandwidth allowing video and control transmissions
  • EMI immunity
  • field-installable
  • directly mounted onto the ground vehicle
  • detwisted fiber optic coil for a secured and fast deployment
  • very low bending radius compatible with a robust use on the field
  • abrasion resistant
  • 1310-1550 nm SM fiber
  • ST connector
  • custom configurations

Land fiber optic spools

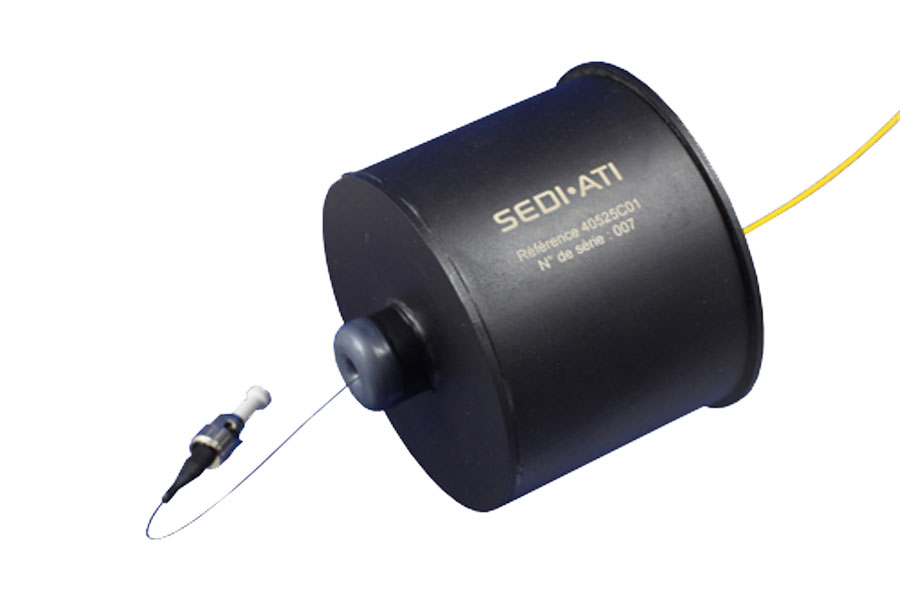

The RBOB-UGV fiber optic spool is ideal for remotely controlling ground unmanned vehicles that have to operate in conditions where it is dangerous or impossible to have an onboard human presence, and where radio frequency signals are not permitted.

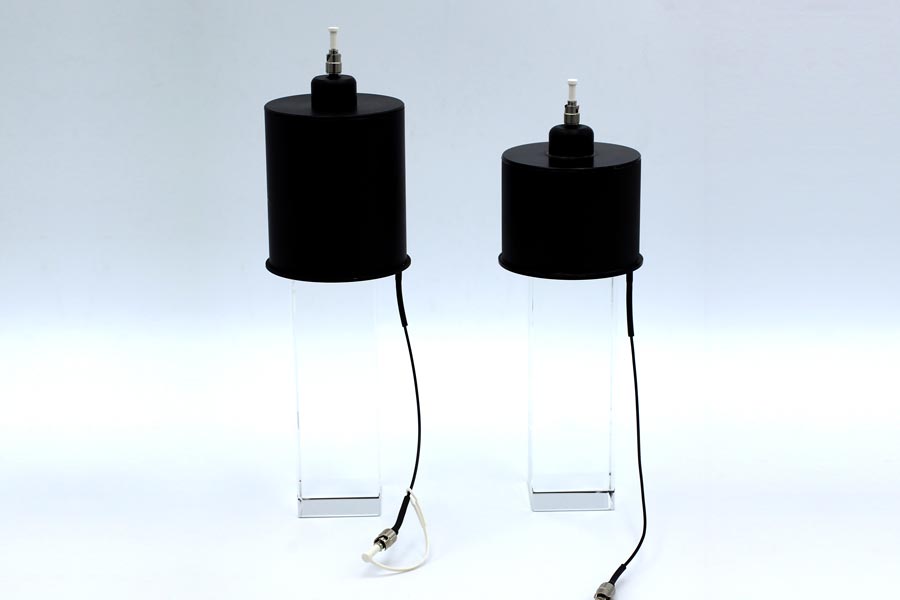

Because the spool is intended to be directly mounted onto the vehicle, we have designed very compact and lightweight packages. We offer two different packages in size depending on the required spool capacity. For instance, our smallest package can contain up to 500 m fiber length in a 64 mm long by 80 mm diameter box and weighs only 235 g.

The deployable side of the spool is connected by an ST connector to the control station while the stationary fiber is connected to the vehicle. Hence, the fiber does not suffer any constraint since it deploys while the vehicle moves. Besides, the optical fiber is reinforced by a custom design cable and spooled with high precision, offering high-speed deployment over long distances.

Potential applications range from the inspection of pipelines and underground mines to reconnaissance and demining operations.

Another advantage of the RBOB-UGV is that it is a disposable system based on the concept: 1 mission = 1 spool. Indeed, the fiber can be easily detached and left on the field, which prevents from rewinding the optical cable and thus allows to save time and shorten the missions.

Also, the fiber can be easily reconnected on the field with a simple field connectorization kit.

Please contact us to discuss your specific requirements.

  • RBOB-UGV-90A

    Spool length
    from 300 m to 500 m
    Dimensions
    64 mm height x 80 mm diameter
    Weight
    < 235 g max.
    Connection to the control station
    ST connector mounted on the extruded overcoating fiber
    Connection to the vehicle
    30 cm long pigtail with 1.8 mm jacket and terminated with a ST connector
    Fiber type
    SM enforced fiber 9/125/350 μm
    Operating wavelength range
    1310-1550 nm
    Bend radius
    < 5 mm
    Insertion loss (without connector)
    0.7 dB/km @1310 nm and @1550 nm
    Tensile strength
    > 34 N
    Breaking strength
    60 N
    Deployment force
    < 0.05 N

  • RBOB-UGV-90B

    Spool length
    from 600 m to 1000 m
    Dimensions
    94 mm height x 80 mm diameter
    Weight
    < 340 g max.
    Connection to the control station
    ST connector mounted on the extruded overcoating fiber
    Connection to the vehicle
    30 cm long pigtail with 1.8 mm jacket and terminated with a ST connector
    Fiber type
    SM enforced fiber 9/125/350 μm
    Operating wavelength range
    1310-1550 nm
    Bend radius
    < 5 mm
    Insertion loss (without connector)
    0.7 dB/km @1310 nm and @1550 nm
    Tensile strength
    > 34 N
    Breaking strength
    60 N
    Deployment force
    < 0.05 N
