Fiber OpticConnectors

Design of fiber optic connectors and fittings

SEDI-ATI stocks a selection of singlemode and multimode fiber-optic connectors to terminate any of the fiber-optic components and assemblies we propose.

Please note that connectors are an integral part of our products and that we do not sell them alone.

Manufacturer of fibre optic connectors

Custom connectors for your projects

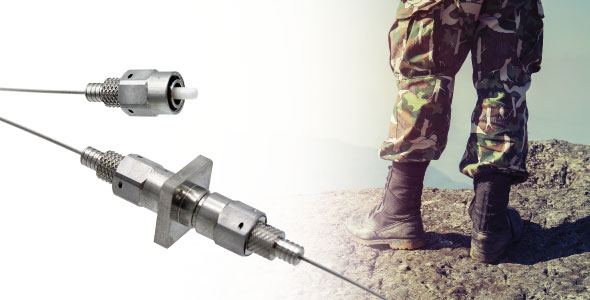

Depending on the product and your application, we can advise you on your choice of connector. Or you can choose between our proprietary connectors specially designed for military, space, and aeronautics applications: FCXtreme®, NANOXtreme®.

For vacuum and high-vacuum applications, we can specify stainless-steel connectors in ST, FC, or SMA style.

Here is a non-exhaustive overview of our selection of standard optical connectors:

  • E2000 APC,
  • ELIO,
  • FC/PC,
  • FC/APC narrow key,
  • FC/APC wide key,
  • LC/PC,
  • LUXCIS,
  • MICROPTIQUE,
  • MTP® male,
  • MTP® female,
  • SC/PC,
  • SC/APC,
  • SMA 905,
  • ST/PC.

Fiber optic adapters, sockets and connectors

Depending on various parameters such as the optical fiber type, the connector type, and the application, the connectors can be mounted with a stainless steel or a ceramic ferrule (Zirconia).

Ceramic ferrules are preferred for applications sensitive to magnetic fields, while stainless steel ferrules are ideal for vacuum applications.

Adapters and bulkhead receptacles for fiber optic connectors

We also offer round and square bulkhead adapters, to connect two cables together. You can choose between E2000/APC, FC, LC, SC, ST, and SMA styles.

Besides, we have an SMA bulkhead receptacle to connect an SMA terminated cable on one side and to project light into free space.

And for power applications, we have developed the K-Power product line. These components are air-spaced SMA to SMA adapters aiming at transferring the optical power from an SMA-905 terminated fiber optic cable to another such cable. Discover the K-Power product line.

Do not hesistate to contact us to discuss your specific needs.

Fiber-optic connector selection guide

Optical fiber typeFerrule materialFerrule diameterCompatible connector style
• Singlemode fibers
• Polarization maintaining fibers
• Multimode graded-index fibers GI 50/125 µm or 62.5/125 μm
• Multimode step-index fibers with ⌀125 μm cladding/td>
Ceramic⌀1.25 mmLC/PC, NANOXtreme®
⌀2.5 mmFC/PC, FC/APC, SC/PC, SC/APC, ST/PC, FCXtreme®
Stainless Steel⌀1.25 mmLC/PC
Multimode graded-index fibers GI 50/125 µm or 62.5/125 μmStainless Steel⌀2.5 mmFC/PC, ST/PC, FCXtreme®, MICROPTIC*
⌀3.17 mmSMA
* for step-index fibers from 200 µm to 400 µm core diameter only.

Don’t hesitate to contact us with your specific requirements.
