Fiber optic medical devices

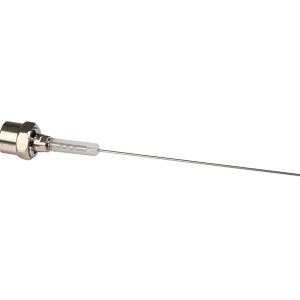

Fiber optic needle probes

Fiber optic needle probes

SEDI-ATI has acquired a very specific know-how in the integration of an optical fiber into a metallic needle. Fiber optic needles are suitable for diagnostic, dentistry and dermatology applications.

FIBERS
Our fibers are USP Class VI certified, non-toxic and biocompatible. Standard products use fibers with core diameter ranging from 200 µm to 600 µm.

DISTAL END
The fiber end is inserted into a hypodermic needle that can be either flat or polished with a specific angle according to the application. A pyramidal end can also be proposed. A special treatment on the needle gives excellent tissue penetration just like a syringe needle.

CONNECTOR
The probe is equipped with the proprietary OneShot SMA or PowerShot SMA connectors manufactured by SEDI-ATI. These connectors are specially designed for disposable probes where cost issue is important. The assembly technique avoids any stress on the fiber itself.

MANUFACTURING
Biocompatible materials.
Packaged, stored and used in a clean environment.
Production workshop certified ISO 9001 & ISO 13485.
Sold sterilized in double bag.

  • MD-NEEDLE

    Fiber type
    silica/silica from 200 µm to 600 µm core diameter
    Fiber length
    according to the customer's requirement
    Needle type
    according to the customer’s application
    Connector
    SMA connector according to the power level
