1x2 large core fiber optic multimode couplers

Key features

  • from 100 μm to 1000 μm fiber core diameters
  • broad wavelength range
  • wavelength insensitive
  • stable coupling ratio
  • high reliability
  • low insertion loss
  • custom configurations available

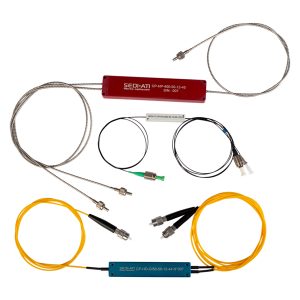

1x2 large core fiber optic multimode couplers

SEDI-ATI’s large core fiber-optic multimode couplers are ideal for spectroscopy applications where large core optical fibers are required.

They can be made with any large core step-index fiber types from 100 μm to 1000 μm core diameters, including Launch fibers (LCH) and Hard-Clad Silica fibers (HCS).

Please contact us to discuss your specific requirements as we can also offer multimode large core fiber-optic couplers with different coupling ratios, different fiber lengths, special packaging for high-temperature applications, higher directivity, and 1xN configurations.

Datasheet Your specific request

  • CP-LC

    Port configuration
    1x2
    Coupling ratio
    50/50; other coupling ratios from 10/90 to 50/50
    Fiber lengths on each port
    1 m
    Fiber type
    MM SI 100 to 1000 μm core
    Directivity
    > 30 dB guaranted by design; higher directivity upon request
    Uniformity
    < 1 dB
    Insertion loss
    < 4 dB; measured in a 50/50 configuration
    Operating wavelength range
    532-1625 nm; depending on fiber type
    Operating temperature range
    -20°C to +70°C
    Storage temperature range
    -40°C to +85°C
