CF and KF vacuum polarization maintaining fiber optic feedthrough with adapter interface

Key features

  • applications: vacuum and ultra-high vacuum
  • hermeticity: 10-11 mbar.l/s
  • fibers: PM
  • interface: FC/APC or FC/PC
  • multichannel: up to 4 depending on flange type
  • available flanges: DN 40 CF and DN 40 KF
  • wavelength ranges: UV-VIS-NIR
  • design: ruggedized

CF and KF vacuum polarization maintaining fiber optic feedthrough with adapter interface

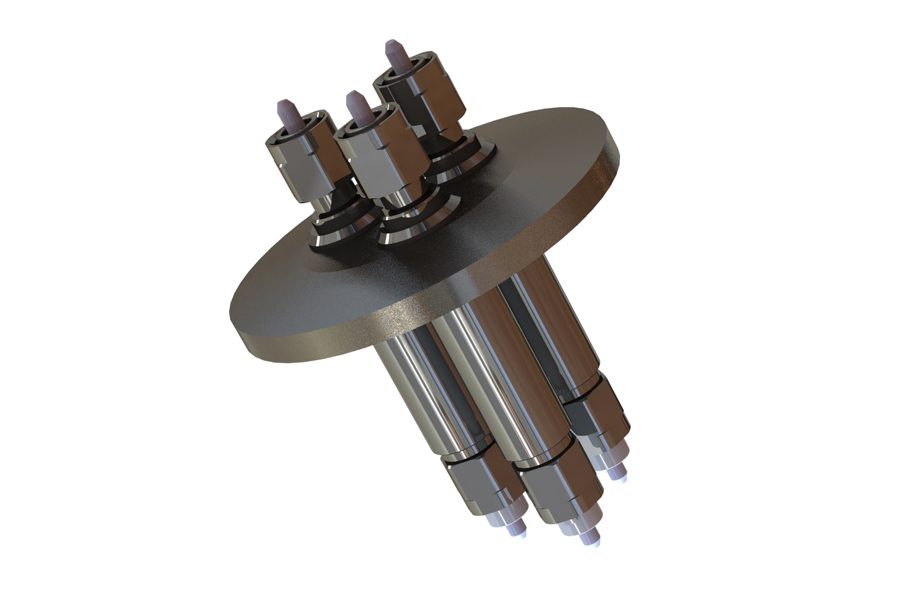

The KTRAV-T12 “CF and KF vacuum polarization-maintaining fiber optic feedthrough with adapter interface” is a multichannel feedthrough. It is available with either a KF flange for high vacuum applications or a CF flange for ultra-high vacuum applications down to 10-11 mbar. And it presents a connector interface on the flange.

Standard configurations are available for:

  • 1 to 4 individual channels within one DN 40 CF flange,
  • 1 to 3 individual channels within one DN 40 KF flange.

Custom designs are also possible upon request as we offer different sizes of ISO, CF, and KF flanges. Consult us for more information.

The channels are soldered to the 304L stainless steel flange, which ensures low outgassing and helium leakage rates compatible with UHV environment. The KTRAV-T12 vacuum polarization maintaining feedthrough ensures a high level of hermeticity better than 10-11 mbar.l/s.

The KTRAV-T12 vacuum fiber feed-through is optimized for polarization-maintaining fibers. It is offered with FC/APC or FC/PC interface.

Please contact us to discuss your specific requirements.

Datasheet Your specific request

  • KTRAV-T12-CF40-FC

    Pressure
    ultra-high vacuum
    Hermeticity
    10-8 mbar.l/s
    Flange type
    DN 40 CF
    Sealing technology
    clamp ring
    Housing material
    stainless steel 304L
    Number of channels
    1 to 4
    Panel drilling diameter
    depends on the number of channels
    Panel thickness
    1 mm min.; 23,5 mm max.
    Tightening torque
    -
    Adapter interface
    FC/PC
    Fiber type
    SM, MM GI50, MM GI62.5, LCH50, LCH105 with 125 μm cladding
    Insertion loss
    < 1 dB max. @1550 nm (0.3 dB typ. @1550 nm on SMF128)
    Operating wavelength range
    200-2000 nm depending on the fiber
    Operating temperature range
    -55°C to +125°C
    Storage temperature range
    -55°C to +200°C

    Read more

  • KTRAV-T12-CF40-FCA

    Pressure
    ultra-high vacuum
    Hermeticity
    10-8 mbar.l/s
    Flange type
    DN 40 CF
    Sealing technology
    copper seal ring
    Housing material
    stainless steel 304L
    Number of channels
    1 to 4
    Panel drilling diameter
    depends on the number of channels
    Panel thickness
    1 mm min.; 23,5 mm max.
    Tightening torque
    -
    Adapter interface
    FC/APC
    Fiber type
    PM, SM, MM GI50, MM GI62.5, MM SI with 125 μm cladding
    Insertion loss
    < 1.5 dB max. @1550 nm (0.7 dB typ. @1550 nm on SMF128)
    Operating wavelength range
    200-2000 nm depending on the fiber
    Operating temperature range
    -55°C to +125°C
    Storage temperature range
    -55°C to +200°C

    Read more

  • KTRAV-T12-CF40-SMA

    Pressure
    ultra-high vacuum
    Hermeticity
    10-8 mbar.l/s
    Flange type
    DN 40 CF
    Sealing technology
    clamp ring
    Housing material
    stainless steel 304L
    Number of channels
    1 to 4
    Panel drilling diameter
    depends on the number of channels
    Panel thickness
    1 mm min.; 23,5 mm max.
    Tightening torque
    -
    Adapter interface
    SMA
    Fiber type
    100 µm to 400 µm core fibers, low OH, high OH, solarization resistant
    Insertion loss
    < 3 dB max. @850 nm (2 dB typ. @850 nm on 200 µm core fiber)
    Operating wavelength range
    200-2000 nm depending on the fiber
    Operating temperature range
    -55°C to +125°C
    Storage temperature range
    -55°C to +200°C

    Read more

  • KTRAV-T12-KF40-FC

    Pressure
    high vacuum
    Hermeticity
    10-8 mbar.l/s
    Flange type
    DN 40 KF
    Sealing technology
    clamp ring
    Housing material
    stainless steel 304L
    Number of channels
    1 to 3
    Panel drilling diameter
    depends on the number of channels
    Panel thickness
    1 mm min.; 23,5 mm max.
    Tightening torque
    -
    Adapter interface
    FC/PC
    Fiber type
    SM, MM GI50, MM GI62.5, LCH50, LCH105 with 125 μm cladding
    Insertion loss
    < 1 dB max. @1550 nm (0.3 dB typ. @1550 nm on SMF128)
    Operating wavelength range
    200-2000 nm depending on the fiber
    Operating temperature range
    -55°C to +125°C
    Storage temperature range
    -55°C to +200°C

    Read more

  • KTRAV-T12-KF40-FCA

    Pressure
    high vacuum
    Hermeticity
    10-8 mbar.l/s
    Flange type
    DN 40 KF
    Sealing technology
    clamp ring
    Housing material
    stainless steel 304L
    Number of channels
    1 to 3
    Panel drilling diameter
    depends on the number of channels
    Panel thickness
    1 mm min.; 23,5 mm max.
    Tightening torque
    -
    Adapter interface
    FC/APC
    Fiber type
    PM, SM, MM GI50, MM GI62.5, MM SI with 125 μm cladding
    Insertion loss
    < 1.5 dB max. @1550 nm (0.7 dB typ. @1550 nm on SMF128)
    Operating wavelength range
    200-2000 nm depending on the fiber
    Operating temperature range
    -55°C to +125°C
    Storage temperature range
    -55°C to +200°C

    Read more

  • KTRAV-T12-KF40-SMA

    Pressure
    high vacuum
    Hermeticity
    10-8 mbar.l/s
    Flange type
    DN 40 KF
    Sealing technology
    clamp ring
    Housing material
    stainless steel 304L
    Number of channels
    1 to 3
    Panel drilling diameter
    depends on the number of channels
    Panel thickness
    1 mm min.; 23,5 mm max.
    Tightening torque
    -
    Adapter interface
    SMA
    Fiber type
    100 µm to 400 µm core fibers, low OH, high OH, solarization resistant
    Insertion loss
    < 3 dB max. @850 nm (2 dB typ. @850 nm on 200 µm core fiber)
    Operating wavelength range
    200-2000 nm depending on the fiber
    Operating temperature range
    -55°C to +125°C
    Storage temperature range
    -55°C to +200°C

    Read more
